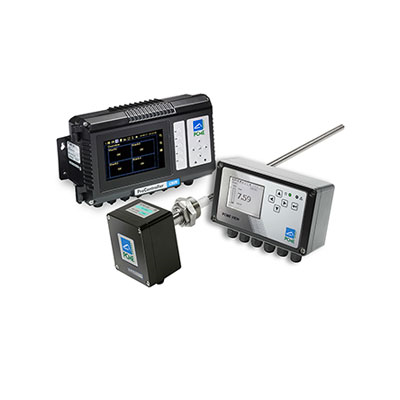

Multi-sensor dust monitor designed for high quality emission measurement in industrial stacks after bag filters, cartridge filters, cyclones and process driers
Advanced Probe Electrification Multi-sensor dust monitor designed for high quality emission measurement in industrial stacks where regulatory approvals are not necessary.
PRO version permits multichannel networked system for plant-wide monitoring of emissions (for up to 32 sensors)
FEATURES & BENEFITS
- Full colour, icon-driven menu and display
- Two independent alarm set points
- Relative dust reading on clear scale 0-100%
- Dust “Overrange” icon
- Security setting
- Digital Signal Processing
- Field upgradeable
MAIN APPLICATIONS
- Stacks after bag filters, cartridge filters, cyclones
- Variable velocities within range 4-30 m/s (typical bagfilter velocity ranges), constant velocity required outside this range
Typical Applications
- Incineraton
- Metals (eg Steel/Aluminium)
- Minerals (eg Cement/Gypsum)
- Chemicals (eg Detergent / Ti02)
- Food (eg Milk Powder / Tobbacco)
- Power (eg Boilers/Biomass)
| TECHNICAL SPECIFICATIONS |
| Measured parameters |
Dust |
| Technology |
ElectroDynamic™ Advanced Probe Electrification |
| Measurement/Monitoring capability |
0-500 mg/m³* |
| Stack/Duct diameter suitability |
up to 6m |
| Flue gas temperature |
up to 800°C |
| Baghouse |
YES |
| Cartridge Filter |
YES |
| Ceramic Filter |
YES |
| Coalescent Filter |
YES |
| Cyclone |
YES |
| Electrostatic Precipitator (ESP) |
/ |
| Wet Electrostatic Precipitator (WESP) |
/ |
| Wet Scrubber |
/ |
| Sensor variants |
Stainless Steel |
| QA checks |
N/A |
*Application dependant
| TECHNICAL DATA |
| Monitoring capability |
0-500 mg/m3 |
| Sensor Variants |
Stainless Steel (standard) |
| Stack Temperature Ranges |
0-125°C standard, up to 800°C option |
| Outputs |
2 x Digital Alarms (1 x 4/20mA Option) |
APPROVALS & CERTIFICATIONS
- Ex Zone 22
- US EPA MACT Compliant BLD
